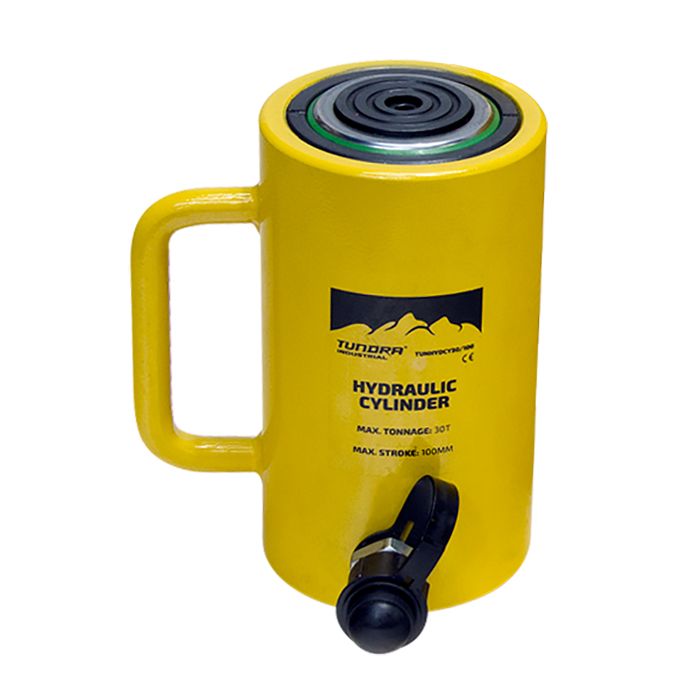

Jefferson Tundra 6" Large Stroke Hydraulic Cylinder 30 Tonne
TUNHYDCY30-150
Ideal for lifting large structures. Compatible with the Tundra Hydraulic Hand Pumps TUNHNDPMP-A & TUNHNDPMP-700A. Suitable for Industrial environments. Fitted with stopping ring, this protects the cylinder when the piston comes to a stop because it absorbs the weight from the other side. Spring loaded piston which allows for quick release. Fitted with O-ring for outstanding seal performance and a long service life
- Specifications
- Tonnage capacity: 30 Tonne
- Stroke: 150mm
- Min oil required: 705cm3
- Closed height: 237mm
- Extended Height: 387mm
- Outside diameter: 103mm
- Inside diameter: 75mm
- Piston rod diameter: 65mm
- Weight: 13.5kg
