Helvi Tp220 Xl Inverter Multi-Purpose Welder 230V (Machine Only) - MPA Spares

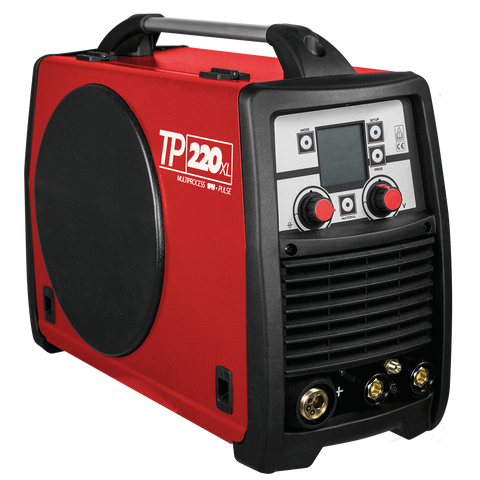

Helvi Tp220 Xl Inverter Multi-Purpose Welder 230V (Machine Only)

99820046K
£2,206.25

Microprocessor-controlled welding inverter suitable for DC controlled MIG/MAG, TIG and STICK WELDING, which guarantees excellent stability of the welding arc and no welding spatters. In STICK mode, the microprocessor controls the Hot Start, Arc Force and Anti-sticking functions. In TIG mode, it controls the Lift Arc function and in MIG mode it allows either manual or fully synergic welding. Slope-up motor setting and automatic soft start wire feed control of the arc. All functions can be easily selected on the front panel. The digital LCD display shows the welding voltage and current and all the parameters selected. Their simplicity and versatility make them perfect for use in body shops, workshops and for all maintenance tasks.

Data sheet - TP 220 XL (2.3 Mb)

TECHNICAL DATA
Input voltage (1ph)  230V 50/60Hz
Power 30% 5,5 KVA
  MMA TIG MIG
No load output voltage  65 ÷ 12 V 65 ÷ 12 V 35 ÷ 12 V
Amp. min-max  5 ÷ 200 A 5 ÷ 200 A 20 ÷ 200 A
Amp. 60974-1 35%  200 A
100% 120 A
35%  200 A
100% 120 A
35%   200 A
100% 140 A
Aluminium - - Ø  0,8 ÷ 1,2 mm
Steel - - Ø  0,6 ÷ 1,0 mm
Flux core - - Ø  0,8 ÷ 1,0 mm
Stainless Steel - - Ø  0,8 ÷ 1,0 mm
Brazing - - Ø  0,8 ÷ 1,0 mm
Ø E 1,6 ÷ 5 mm - -
Insulation H
Protec. Degree IP22S
Machine (LxWxH)  600x255x480 mm
Package (LxWxH)  750x400x515 mm
Weight box/net  30 / 27,4 Kg
Code 99820046K
