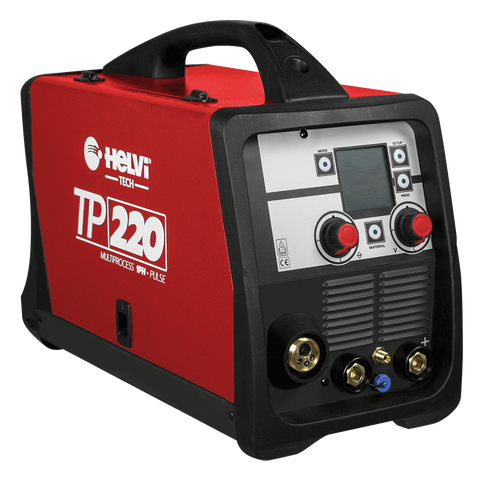

Helvi Tp220 Inverter Multi-Purpose Welder 230V (Machine Only)
Microprocessor-controlled welding inverter suitable for DC controlled MIG/MAG, TIG and STICK WELDING, which guarantees excellent stability of the welding arc and no welding spatters. In STICK mode, the microprocessor controls the Hot Start, Arc Force and Anti-sticking functions. In TIG mode, it controls the Lift Arc function and in MIG mode it allows either manual or fully synergic welding. Slope-up motor setting and automatic soft start wire feed control of the arc. All functions can be easily selected on the front panel. The digital LCD display shows the welding voltage and current and all the parameters selected. TP210 PFC is compact, lightweight and equipped to accept reels with diameter of 200 mm. Their simplicity and versatility make them perfect for use in body shops, workshops and for all maintenance tasks.
Data sheet - TP 220 (2.5 Mb)
| Input voltage (1ph) | 230V 50/60Hz | ||
| Power 30% | 5,5 KVA | ||
| MMA | TIG | MIG | |
|---|---|---|---|
| No load output voltage | 65 ÷ 12 V | 65 ÷ 12 V | 35 ÷ 12 V |
| Amp. min-max | 5 ÷ 200 A | 5 ÷ 200 A | 20 ÷ 200 A |
| Amp. 60974-1 | 35% 200 A 100% 120 A |
35% 200 A 100% 120 A |
35% 200 A 100% 140 A |
| Aluminium | - | - | Ø 0,8 ÷ 1,2 mm |
| Steel | - | - | Ø 0,6 ÷ 1,0 mm |
| Flux core | - | - | Ø 0,8 ÷ 1,0 mm |
| Stainless Steel | - | - | Ø 0,8 ÷ 1,0 mm |
| Brazing | - | - | Ø 0,8 ÷ 1,0 mm |
| Ø E | 1,6 ÷ 5 mm | - | - |
| Insulation | H | ||
| Protec. Degree | IP22S | ||
| Machine (LxWxH) | 500x280x420 mm | ||
| Package (LxWxH) | 685x295x395 mm | ||
| Weight box/net | 24 / 20 Kg | ||
| Code | 99820035K | ||
