4L360K-A34 Performance Agri/garden Lawn Mower V-Belt with Aramid Fiber

4L360K-A34 Performance Agri/garden Lawn Mower V-Belt with Aramid Fiber

DRY-4L0360 KEVLAR
£22.94

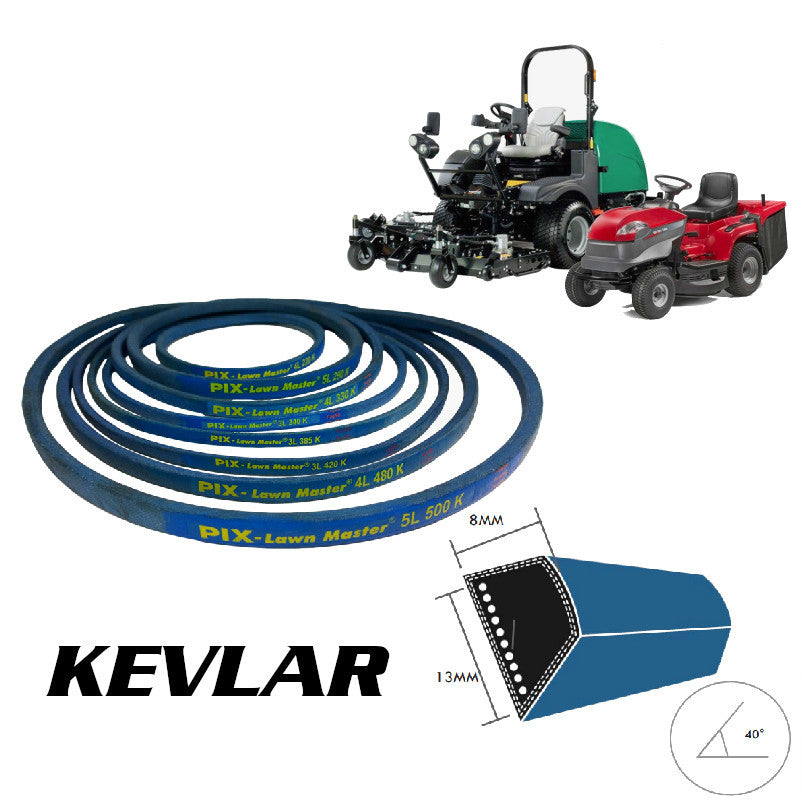

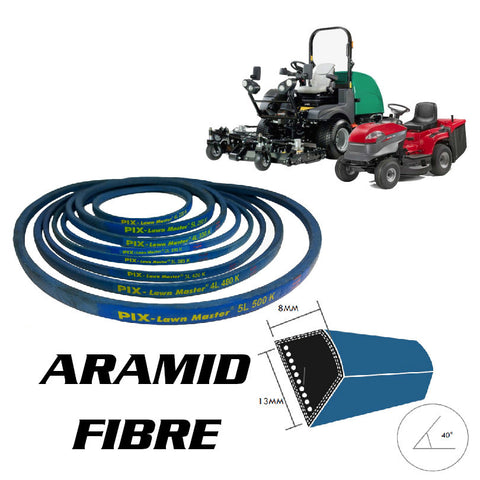

4L0360K-A34 PERFORMANCE AGRI/GARDEN LAWN MOWER V-BELT WITH DUPONT™ KEVLAR

Belts have large diameter ARAMID KEVLAR cords, impregnated with special compound which eliminates the need for re-tensioning. Our belts are able to withstand high levels of reverse flexing usually associated with "serpentine" drives, and external idler placement with high resistance to oil, heat and cracking.

  • Specifications
  • High tensile strength
  • Non extensibility
  • High resistance to shock loads
  • High resistance to wear and tear
  • Reduced slippage while clutching
  • High resistance to repeated reverse flexing
  • High resistance to oil, heat, and cracking

 STANDARDS, DIMENSIONS & PRODUCT RANGE

Section Dimensions Angle (Deg) Standard Recom. Min Pulley Dia. (mm) Manufacturing Range
Top Width (mm) Thickness (mm) Min Max Length Desig.
3L 10 6 40 RMA IP 23 39 266 4064 Belt No. ÷ 10 = Outside length in inches
4L 13 8 40 RMA IP 23 64 381 9144 Belt No. ÷ 10 = Outside length in inches
5L 17 10 40 RMA IP 23 89 533 5588 Belt No. ÷ 10 = Outside length in inches
