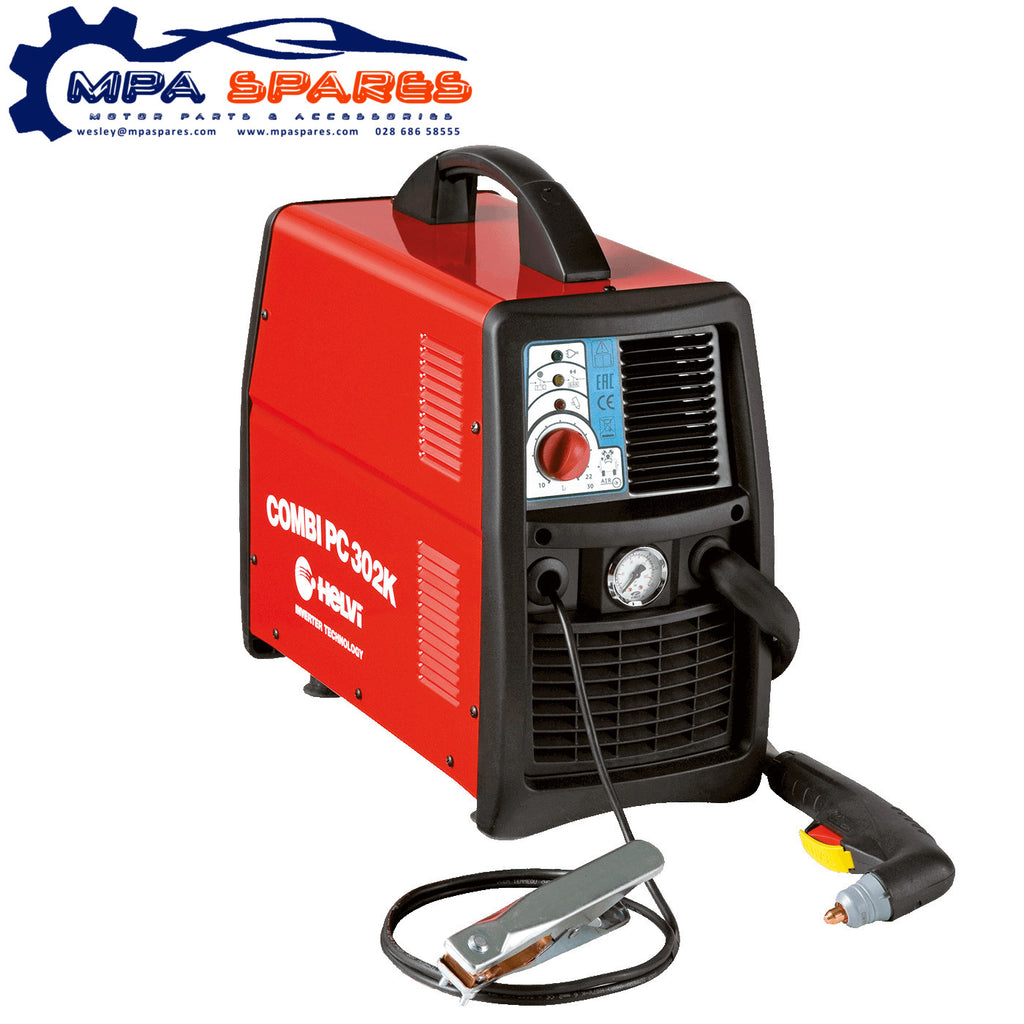

Helvi Plasma Pc302K With Compressor 230V (Wired In Torch & Earth Lead)
99830015
Plasma cutting systems based on inverter technology with internal compressor. Portable, single-phase, microprocessor-controlled and equipped with pneumatic torch without HF. Easily used even at some distance from a compressed air source, they produce quality cutting on all conductor materials such as steel, stainless steel, aluminium, copper, brass, etc. Suitable for lightweight and heavy bodywork, maintenance of large installations, air conditioning systems, shipyards and metalwork in general.
Data sheet - Combi PC 302K (1.3 Mb)
TECHNICAL DATA
| Plasma torch | PT40C | |
| Input voltage (1ph) | 230V - 50/60Hz | |
| Power 60% | 2,5/3 KVA | |
| No load output voltage | 310 V Max | |
| INTERNAL COMPRESSOR | EXTERNAL AIR | |
|---|---|---|
| Range | 10 ÷ 25 A | 10 ÷ 30 A |
| Cutting current | 40% 25 A | 30% 30 A |
| Max cutting capacity | 8 mm | 10 mm |
| Air pressure | - | 4 ,5 bar |
| Air capacity | - | 100 l/min |
| Insulation | H | |
| Protec. Degree | IP22S | |
| Machine (LxWxH) | 435x200x395 mm | |
| Package (LxWxH) | 565x300x410 mm | |
| Weight box/net | 21,5 / 20 kg | |
| Code | 99830015 | |
